BS23D-Fcryogenic solenoid valve

Advantage：large stock in common models,special models could be custom-made!

Body material: SS304,SS316 Nominal dia.: DN3-50mm Press. range: 0-2.5Mpa Fluid temper.: -196~60℃ Suitable medium: liquid nitrogen, liquid ammonia, refrigerant cryogenic liquids and gases

Details

Germany technology, export series, quality and reliable The distribution of direct action piston type, the maximum pressure of 2.5Mpa|||
Compact design, beautiful appearance. |||
Piston structure, durable wear-resistant |||
Using special low temperature resistant materials |||
German technology, export series, reliable quality |||

Features

distribution of direct-acting piston type , maximum pressure 2.5Mpa | | |

compact design and sophisticated appearance live plug structure , durability < span style = "color: # FF0000; font-family: Microsoft elegant black, Times New Roman , Arial, sans-serif; line-height: 20px; background-color: # F9F9F9; font-size: 14px;"> | | | < / span>

using special low-temperature -resistant materials | | |

reliable German technology , the export series , the quality | | |

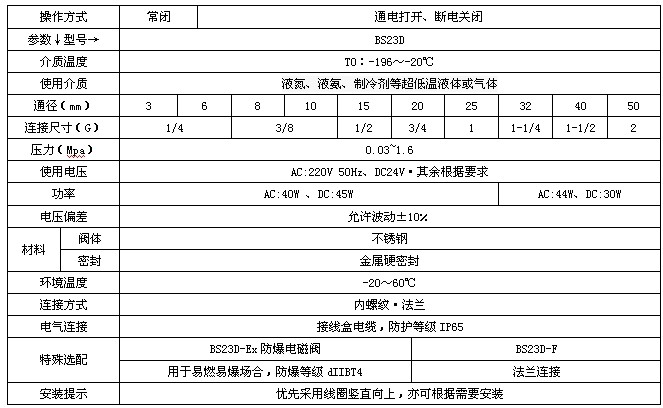

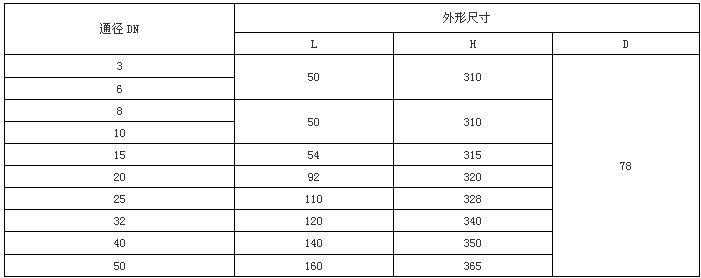

Detailed Parameters
