Butterfly valve butterfly valve is a conventional pipeline preferred, has the advantages of simple structure, small flow resistance coefficient, flow characteristic is linear, not be stranded. And light weight, convenient installation, has the advantages of small driving torque. This valve can be used as a cut off the media, and can be used for regulating the flow of media use. Driving device according to the requirements of users, respectively, by manual, electric, pneumatic etc.. With different materials parts, seal ring with different materials, can be adapted to the medium, different conditions, cost and performance to achieve the best effect.

Simple structure tends to be linear ||| not be stranded ||| and light weight ||| installation ||| convenient ||| drive torque smaller flow resistance coefficient is small ||| ||| flow

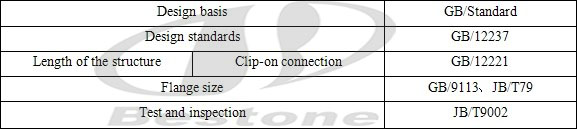

specification



Note: the series of butterfly valve structure length and connercting flange size can be designed and manufactured according to user requirements

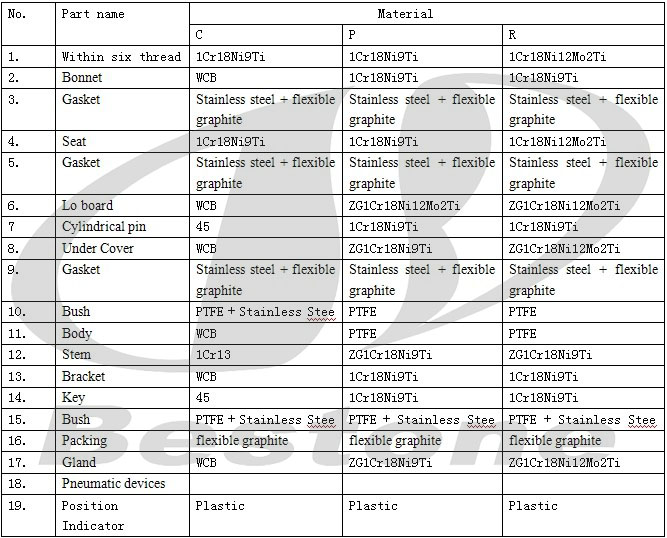

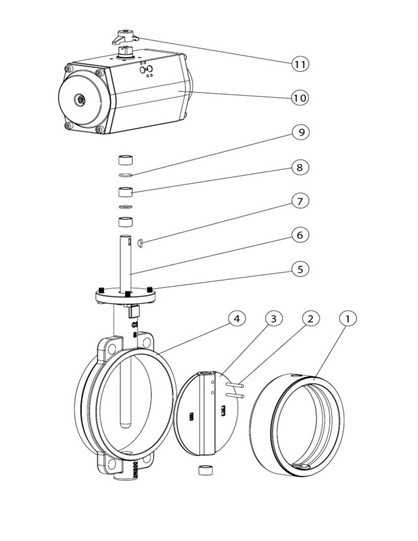

The main parts material list

Note: the main components and sealing ring materials can also be in accordance with the special requirements of the actual working conditions or the user selection in design

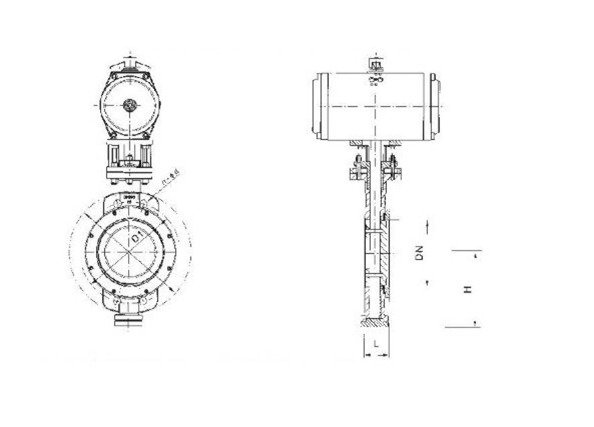

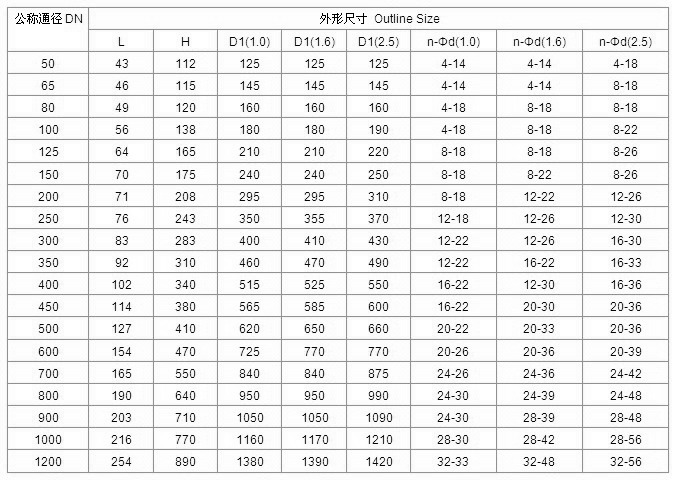

main external and connecting dimensions
