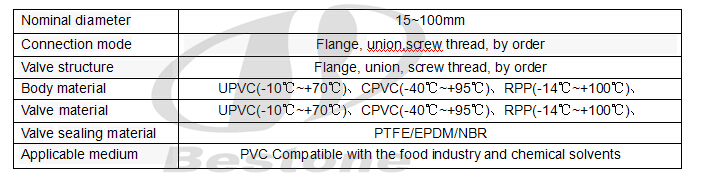

Body mat'l: CPVC,UPVC,PVDFNominal dia.: DN15-200mmPressure range: 1.0MpaFluid temperature: -40 ℃ -140 ℃ Suitable medium: PVC compatible food industrial chemical solvent
Details
CPVC ball valve adopts double Union, flange connection, could be assembly simply. Has the advantages of compact structure, abrasion resistance, easy to pull off, convenient maintenance,easily maintenance. The valve body material is hyegenic and non-toxic, corrosion resistance, with light weight, widely used in many industries, for example: industry water and raw water piping system, drainage and sewage pipeline system, brine and seawater piping system, hydrochloric acid and chemical solution system etc.
Features
 Midea temperature range: -40 ℃ ~+140 ℃ |||
  Has excellent resistant property to corrosive chemical.|||
  flame retardant properties is self quenching |||
  low heat conductivity, equal to about 1/200 of steel material |||
  Hygienic standard of this valve body is produced to national health standard requirements  |||
 The valve is light,the weight is only 1/5 of steel valves and 1/6 of brass valves|||
  With compact structure, material is non-toxic and hygienic, easy installation, wear-resistant, simple maintenance |||
  With excellent aging resistance and UV resistance property, so that the life-span is much longer than other common plastic material|||

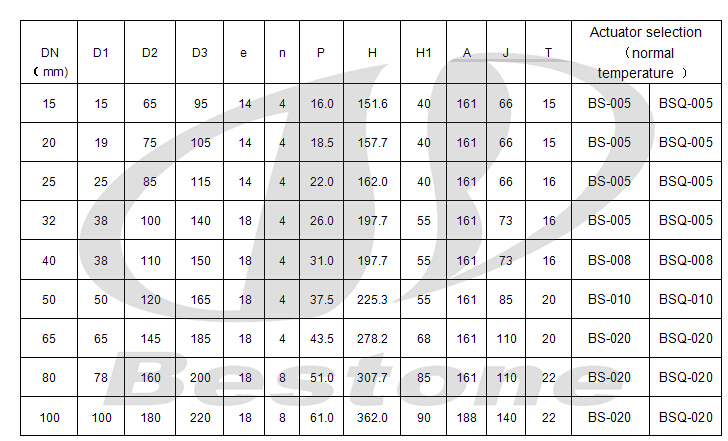

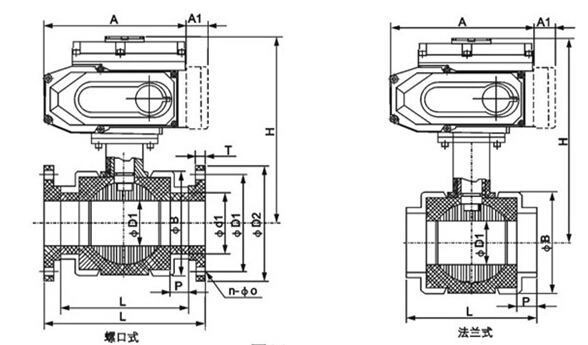

Detailed Parameters
