BSQ941 Electric fluorine-lined ball valve

Advantage：large stock in common models,special models could be custom-made!

Model: BSQ941F46-16C / P Related Products: Electric lined flanged ball valve, explosion-proof electric lined ball valve Body Material: WCB, 304,316 Nominal Diameter: DN15-300mm Pressure range: 1.0,1.6 Mpa Fluid temperatu

Details

Electric lined ball valve with a switch and intelligent two kinds of valves, ball valves with electric actuators BS supporting input control signal (4 ~ 20mADC or 1 ~ 5VDC) and single-phase power to control operation, with strong function, small size, light cheap people, reliable performance, supporting simple, flow capacity, especially suitable for ending a viscous, containing particles, fibrous nature of the occasion. At present, the valves are widely used in food, environmental protection. Light industry, petroleum, paper, chemicals, teaching and research equipment, electric power industry, industrial automation systems.

Features

Corrosion resistance: the body cavity and management bodies are lined with 2.5-3mm thick F46, acid, alkali, strong corrosion resistance.|||
Soft sealing seat, good sealing performance. |||
Small size, light weight, simple structure, easy installation and maintenance. |||
Using frame structure, high strength, large flow area, small flow resistance. |||
Overall paint, can effectively prevent corrosion and replace the seal seat material as long as, you can use a different media. |||
The valve has two-way sealing function, when installing the flow of control from the media, is not affected by spatial location, can be installed in any direction. |||
The valve is a unique structure, flexible operation, saving and convenient. |||

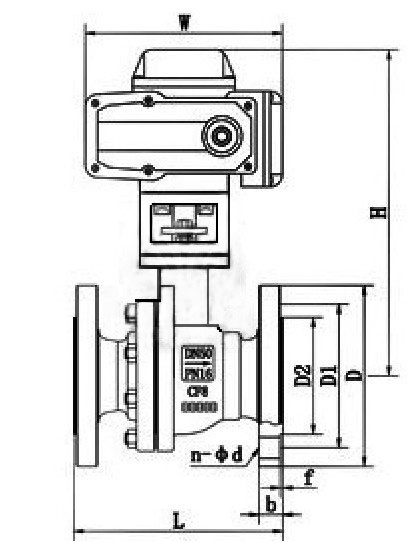

Detailed Parameters
