BSD941 Electric flange butterfly valve

Advantage：large stock in common models,special models could be custom-made!

The valve body material: cast iron, WCB, 304 Nominal diameter: DN50-1000mm Pressure range: 0.6, 1, 1.6Mpa Fluid temperature: -20 ℃ -150 ℃ Suitable medium: water, sea water, food, natural gas, alcohol, salt, acid, alkali, oil, steam, air and o

Details

Electric butterfly valve is a valve with BSQ series electric actuator (optional explosion-proof) supporting, the input control signal (4~20mA or 1~5VDC) and single-phase power can control the operation, electric butterfly valve has strong function, small volume, light and pleasant, reliable performance, simple matching, flow capacity, electric butterfly valve is particularly suitable for medium thick, containing particles, fiber nature of the occasion. At present, the electric control valve is widely used in food, environmental protection, light industry, petroleum, papermaking, chemical industry, teaching and research equipment, and electric power industries in industrial automatic control system.

Features

The strong function ||| small volume ||| light and pleasant ||| reliable performance ||| supporting large ||| simple ||| flow capacity of electric butterfly valve is particularly suitable for the medium is thick, containing particles, fiber nature of the occasion |||

Detailed Parameters

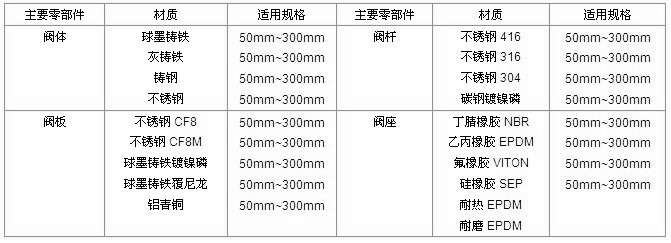

valve set up optional material

sealing applicable medium, temperature recommendation form

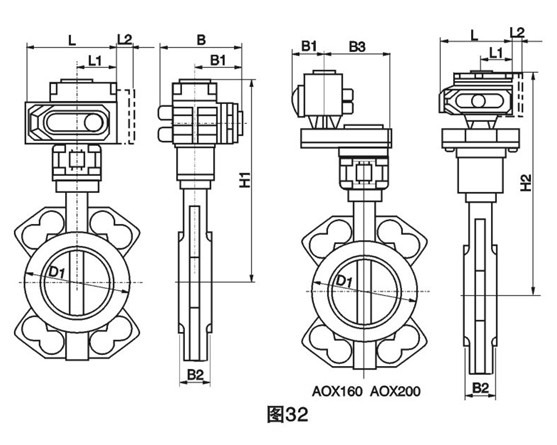

installation size (unit: mm) (dotted line for the analog control box, switch type without this size)

body

Nominal diameter: 50-400mm

Nominal pressure: PN1.0, 1.6, 2.5Mpa

Connection: flange connection

material: HT200 ZG251 ZG1Cr18Ni9 ZG0Cr17Ni12Mo2 Teflon lining

Medium temperature: ambient temperature: -20 ℃ ~+200 ℃ ℃; heat type: -40~+450

Suitable medium: water, sea water, food, natural gas, alcohol, salt, acid, alkali, oil, steam, Air etc.
