技术规范

注:系列球阀结构长度及连接法兰尺寸可根据用户要求设计制造

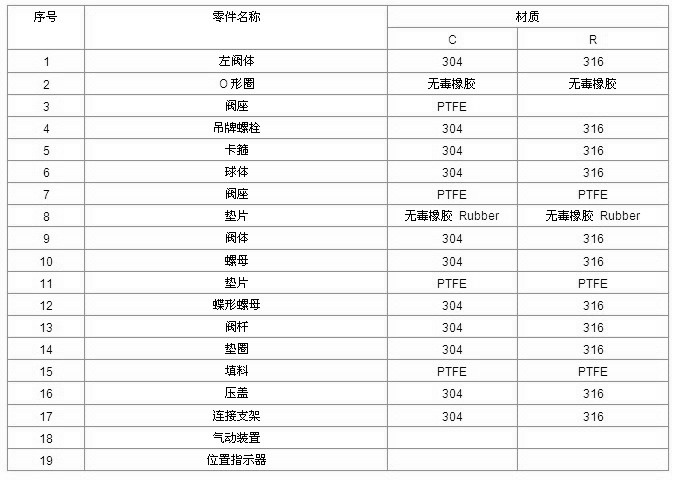

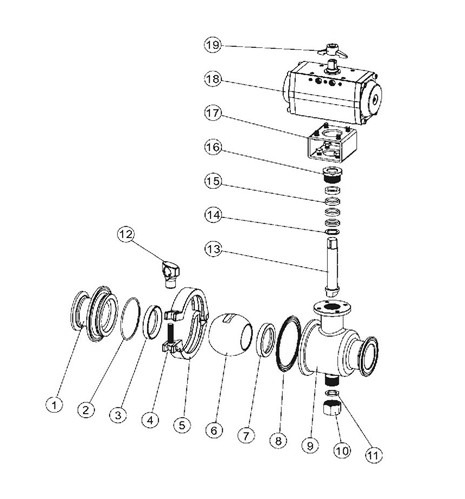

主要零件材质表

注:主要零部件及密封圈的材质亦可根据实际工况条件或用户特殊要求设计选用.

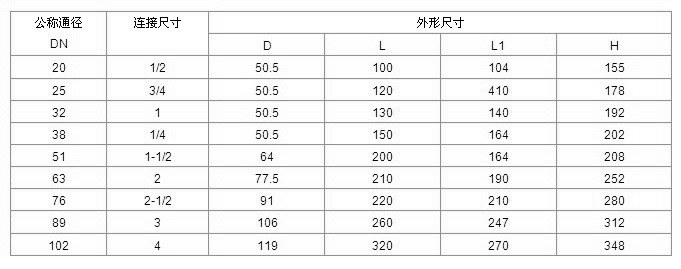

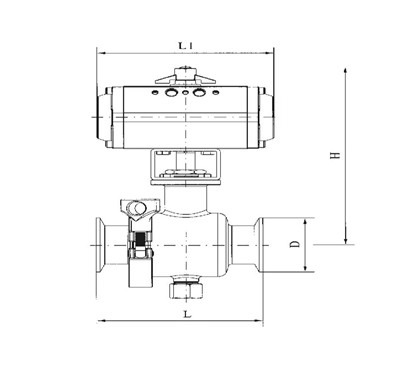

主要外形及连接法兰尺寸BSQ641(F、H)

产品维护使用及安装说明
1、本阀门安装前，应将管道及阀门清洗干净，密封面处不得有划伤痕和污物，以免产生内漏或减少产品的使用寿命。
2、安装时须仔细核对卡箍连接型号是否一致，卡箍与该阀连接处应安装专用密封圈，使该阀与管道连接密封可靠。 水平管道、垂直管道均可安装。
3、该阀安装完成通入压力介质时，转动手柄90°检查内外密封，如无渗漏现象，即可投入正常使用。
4、使用过程中如发现蝶阀关闭时，内部仍有渗漏现象，须更换密封圈，重新正确安装后再投入使用。
5、该蝶阀一般用于接通及断开介质，也可以用于调节流量，但不要将该阀安装于要求严格调节介质流量大小的系统中。
产品制造、检验标准
制造标准：GB/T12237-1989检验标准：GB/T13927-1992 JB/T9092-1999
配套附件
①电磁阀(DC24V、AC220V)(防爆、普通)；
②空气减压过滤器(三联件)；
③限位开关(防爆、普通)；
④手动操作器；
⑤电气定位器(4-20MA)气动阀门定位器(0.15-0.8)Mpa；

specification

Note: the series of ball valve structure length and connecting flange size can be designed and manufactured according to user requirements

The main parts material list

Note: the main components and sealing ring materials can also be designed according to special requirements of the actual working conditions or the user selects.

main shape and connecting flange size BSQ641 (F, H)

product maintenance and installation instructions
1, the valve before installation, pipeline and valve should be cleaned, sealing surface is not zoned scar and dirt, to avoid leakage or reduce the service life of the product.
2, installation must check carefully clamp connection type is consistent, clamps and the valve connection should be the installation of special sealing ring, the valve and pipeline connection sealing is reliable. Horizontal pipe, vertical pipe can be installed.
3, the valve is installed into the pressure medium, the seal handle is rotated 90 ° check inside and outside, such as no leakage phenomenon, can be put into normal use.
4, used in the process such as the discovery of the valve is closed, still has leakage phenomenon, should replace the seals, re installed correctly, and then put into use.
5, the butterfly valve is generally used to connect and disconnect the media, can also be used to adjust flow, but not to the valve installed in the strict regulating media flow in the size of the.
products manufacturing, inspection standard
manufacturing standards: GB/T12237-1989 standards: GB/T13927-1992 JB/T9092-1999
accessories
the solenoid valve (DC24V, AC220V) (explosion-proof, ordinary);
air vacuum filter (FRL);
the limit switch (explosion-proof, ordinary);
4;
the electrical locator (4-20MA) pneumatic valve positioner (0.15-0.8 Mpa )
