HA pneumatic actuator

Advantage：large stock in common models,special models could be custom-made!

Body material: aluminum alloy Nominal diameter: 800~16000 nm Pressure range: 1, 1.6MpaFluid temperature: -20 ℃ -150 ℃ Suitable medium: water, air, gas, oil and weak corrosive fluid

Details

HA multi spring diaphragm actuator is the driving mechanism of CV3000 regulating valve, has the advantages of small volume, light weight, convenient repair operatioN.
HA multi spring diaphragm actuator, is to change the output pressure regulating instrument pneumatic change into the pUsh rod displacement. Therefore, as long asIt is connected with the valve regulating valve, the valve core can be moved to the corresponding to the input signal location. The actuator is multi springDiaphragm actuator, compact structure, large output force.

Features

parts materials Membrane cover: carbon steel
Membrane film: ethylene propylene rubber clip nylon

: stainless steel rod frame: HT200
Spring range: 0.02~0.10, 0.08~0.24MPa
Air pressure: 0.14~0.40 MPa
Source: joint Rc1/4
Environment temperature: -30 ~ +70 ℃
Annex
Positioner, air filter regulator, Paul position valve, limit switch, hand
wheel mechanism etc. The performance of
poor: belt positioner -- less than full stroke 1%
error: HA not with a locator -- less than full stroke 5%
error: HA2~4 not with a locator -- less than full stroke 3%
The basic error: HA1 with HEP Locator - less than the full stroke ± 2%
The basic error: HA2~4 belt positioner - less than the full stroke ± 1%
The basic error: belt positioner - less than the full stroke ± 5%

Detailed Parameters

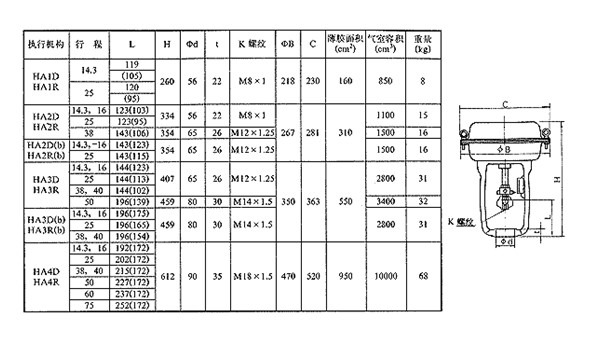

dimensions and weight

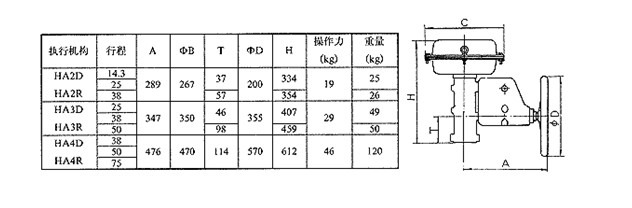

side mounted handwheel

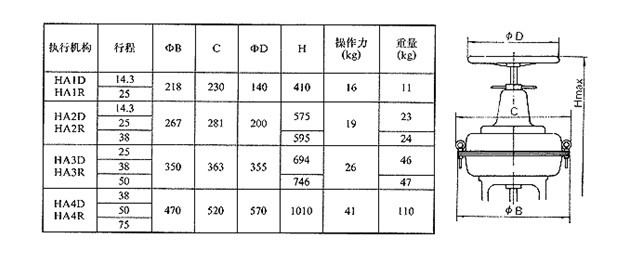

top mounted handwheel

role type

Positive role: HA1D, HA2D, HA3D, HA4D

Reaction: HA1R, HA2R, HA3R, HA4R

Note: 1, it is the role of implementing agencies: supply pressure thin film gas chamber increases, the actuator extends outwards.

2, reverse actuator: supply pressure thin film gas chamber increases, the actuator to indent.

parts material Material

Membrane cover: carbon steel

film; film: ethylene propylene rubber clip nylon

stem: stainless steel

frame: HT200

Spring range: 0.02~0.10, 0.08~0.24MPa

For Pressure: 0.14~0.40 MPa

Source: Rc1/4 joint

Environment temperature: -30 ℃ to +70 ℃
