ZMABS-220, 230 pneumatic diaphragm angle regulator valve

Advantage：large stock in common models,special models could be custom-made!

The valve body material: steel, forged stainless steel Nominal diameter: DN6-100mmPressure range: 22, 32MpaFluid temperature: -40 ℃ -450 ℃ Suitable medium:

Details

ZMABS-220, 230 pneumatic diaphragm angle high pressure regulating valve, a pneumatic film multi spring actuator and angular high-pressure valve. The lens type valve structure, the valve seat is easy to replace, good sealing performance. DN ≤ 25 seat, the valve head adopts hard alloy 6YC1, DN ≥ 32 of the deposited tungsten cobalt alloy, has the advantages of corrosion resistance, erosion, greatly improving the service life. Widely used in chemical, oil refining and other industries, especially suitable for synthetic ammonia, urea industry pressure and pressure differential of media regulation.

Features

ZMABS-220, 230 pneumatic diaphragm angle high pressure regulating valve, a pneumatic film multi spring actuator and angular high-pressure valve. ||| the lens seat seat structure, easy replacement, good sealing performance. DN ≤ 25 seat, the valve head adopts hard alloy 6YC1, DN ≥ 32 of the deposited tungsten cobalt alloy, has the advantages of corrosion resistance, erosion, greatly improving the service life. ||| is widely used in all kinds of chemical industry, oil refining industry, especially suitable for synthetic ammonia, urea industry pressure and pressure differential of media regulation.

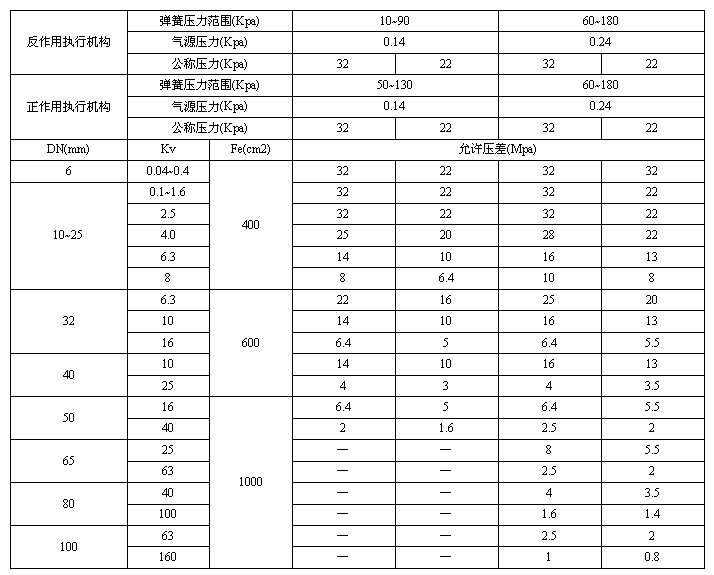

Detailed Parameters

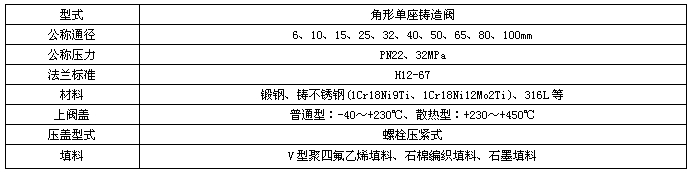

body

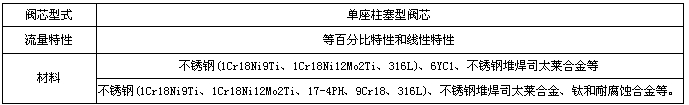

valve components of

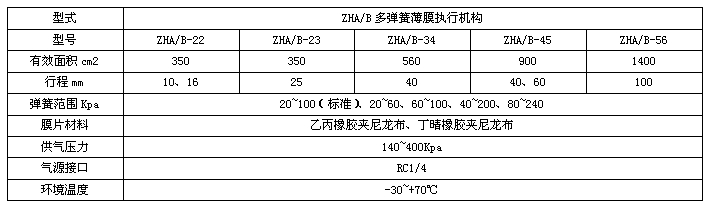

actuator

valve type
gas closed (B) - lost when the gas valve open (FO); open air (K) - lost when the gas valve closed (FC)

valve type
Air to close (B) - lost when the gas valve open (FO); open air (K) - lost when the gas valve closed (FC)

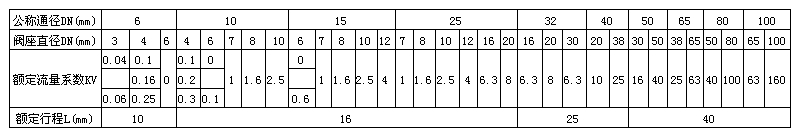

rated flow coefficient KV, rated stroke

medium flow, the bottom side of

To medium: the side into the bottom out
